15,000 Sq Ft Industrial Foam Roof Recoat — AV Dimensions, Chandler
A 15,000 square foot Chandler industrial building with an aging, yellowed foam roof needed a full recoat before another Arizona monsoon season pushed it past the point of restoration. We prepped the substrate, added a fresh layer of foam where needed, and locked it all in with 2 coats of AC100 premium white elastomeric — backed by a 10-year warranty.
The ChallengeA yellowed foam roof running out of runway in the Chandler sun
AV Dimensions runs a 15,000 square foot industrial building in Chandler, Arizona, tucked into a busy South Chandler industrial park at address 6885. Like most industrial buildings in the Valley, it had a spray polyurethane foam (SPF) roof system — and like most SPF roofs, the foam itself was fine. The elastomeric topcoat that protects the foam from Arizona's UV, on the other hand, was tapping out.
Our first drone flyover told the whole story. The roof was a pale, chalky yellow across the entire 15,000 square feet — the classic look of foam that has lost its topcoat and started to oxidize. Arizona's UV load is brutal on white elastomeric coatings. Somewhere between year 8 and year 12, even a well-installed topcoat starts to chalk off, thin out, and expose the polyurethane beneath. Once that happens, the foam itself starts absorbing UV and breaking down.
This is the point in a foam roof's life where you have exactly two options. Recoat now, while the foam substrate is still intact — or wait another 2 to 3 years, watch the foam break down past the point of restoration, and pay for a full tear-off and replacement instead. On a 15,000 sq ft industrial roof, the difference is roughly a six-figure decision. AV Dimensions made the smart call and recoated.
On top of the surface aging, the roof had a busy field of HVAC penetrations — rooftop package units, condenser stands, exhaust stacks, and skylights — plus perimeter parapet transitions that all needed to be scraped, prepped, and re-sealed as part of the recoat. Industrial roofs are never just flat rectangles.

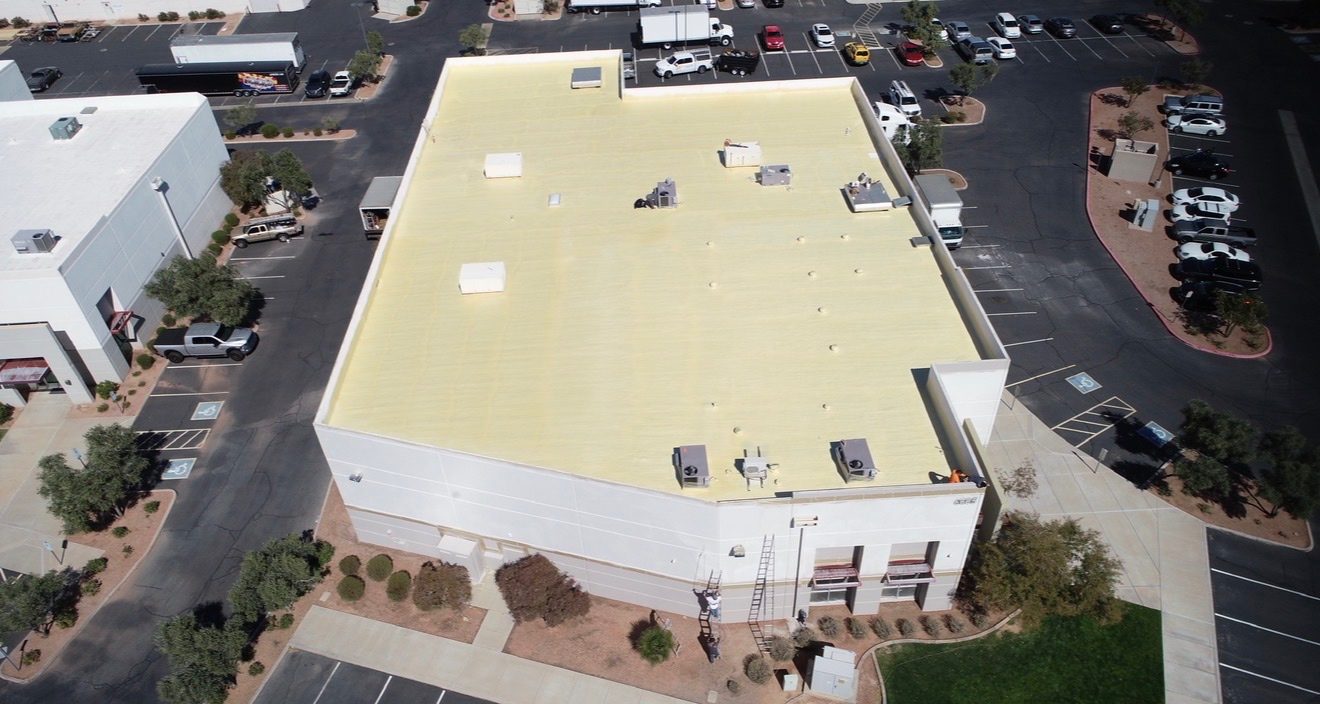

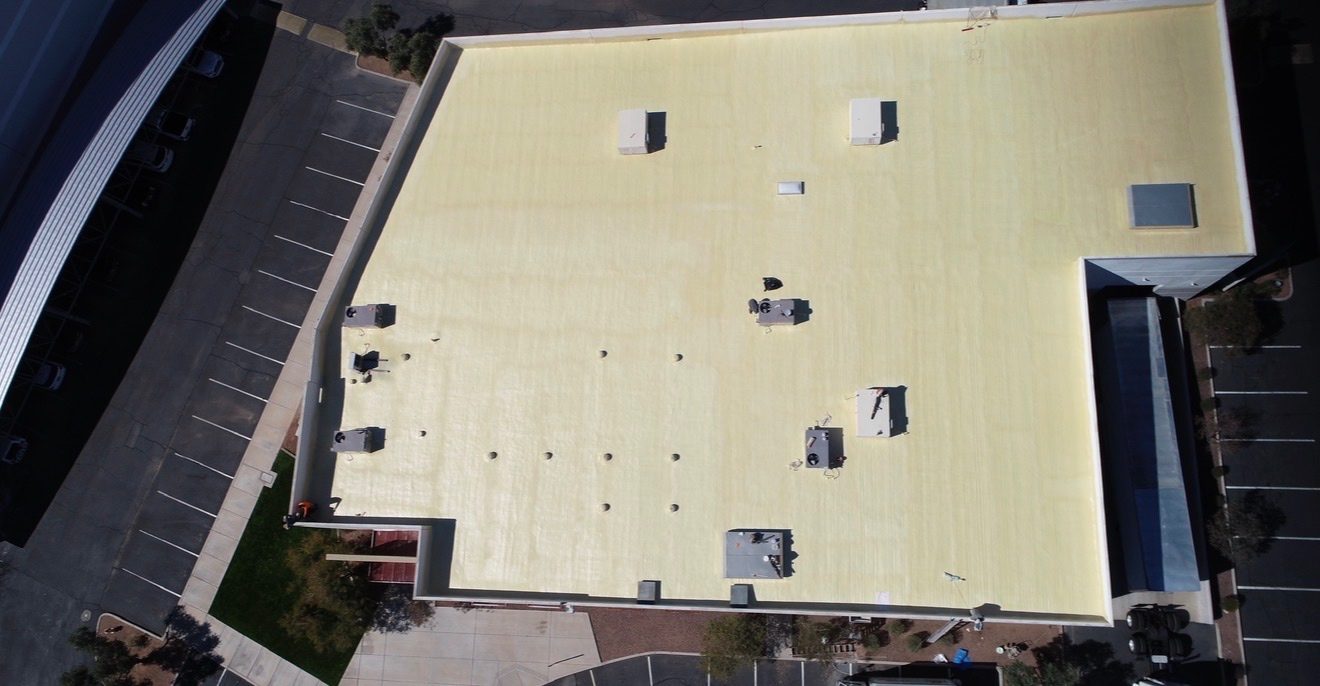

What We FoundBefore: chalked, yellowed foam across all 15,000 sq ft
The ScopeFoam-over-foam recoat, top to bottom
Because the foam substrate was still structurally sound, this was a foam-over-foam recoat rather than a tear-off. We prepped the existing surface, brought in fresh spray foam only where the substrate needed to be built up or repaired, and then locked in the whole system with 2 coats of AC100 premium white elastomeric. Here's exactly what the scope covered:
Project scope of work
- Full drone survey: Documented every rooftop penetration, low spot, and area of surface wear before the crew set foot on the roof
- Surface cleaning: Pressure-washed the entire 15,000 sq ft surface to remove chalk, dirt, and oxidized coating — coating adhesion is only as good as the surface prep
- Foam repair & leveling: Added fresh spray polyurethane foam anywhere the existing substrate was worn, pitted, or holding water (foam-over-foam) to restore a positive drainage plane
- Penetration prep: Scraped, cleaned, and primed every HVAC curb, vent stack, and abandoned penetration in preparation for elastomeric mastic and reinforcing fabric
- Coating system: 2 full coats of AC100 premium white elastomeric — the first coat seals and primes the foam, the second coat builds the protective film thickness that gives the system its warranty rating and its solar-reflective performance
- Mil-thickness QC: Wet mil readings during application to confirm we hit the manufacturer-required film build across every square foot
- Final walkthrough: Punch-walk and photo documentation with the owner before warranty was issued
- 10-year warranty issued by Vanguard Roofing AZ upon completion

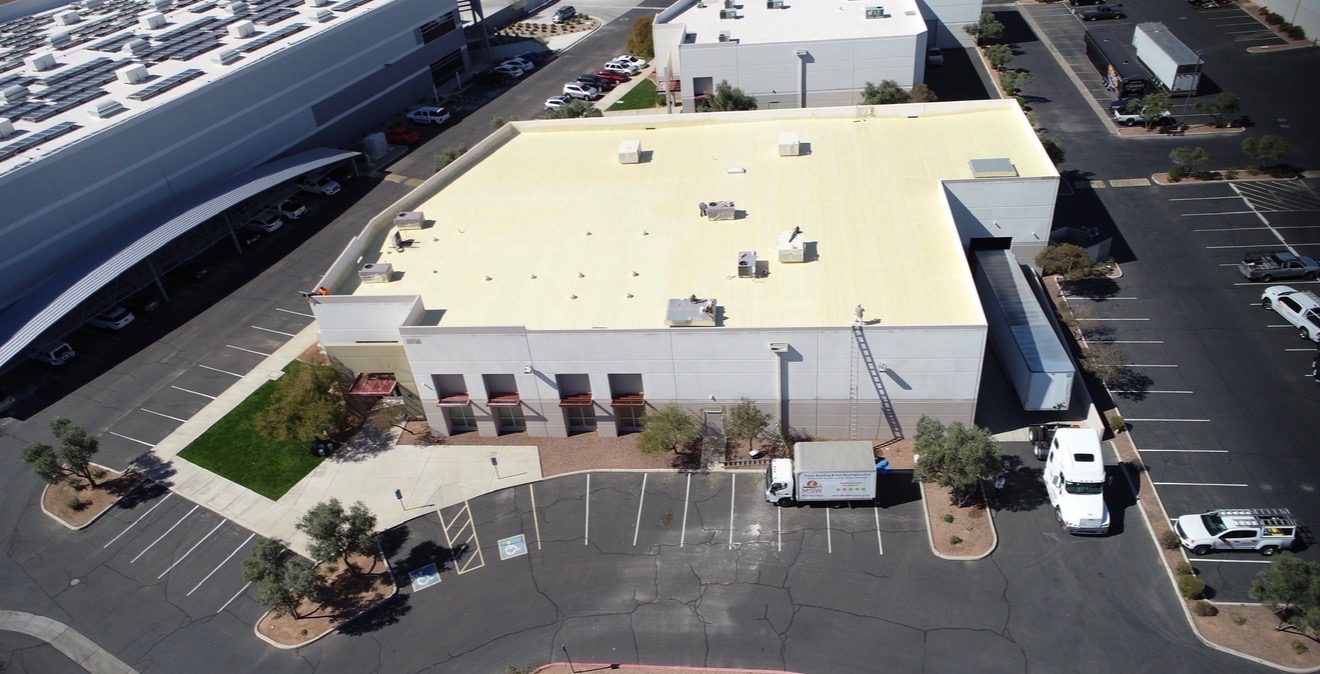

During the JobBoots on the roof, MSW truck on the ground
Once prep was complete, the actual application went quickly. Spray polyurethane foam and elastomeric coating both love Arizona's climate — as long as you avoid monsoon humidity spikes and mid-summer surface temps that get too hot for the coating to flash properly. We scheduled the work around the weather and kept a close eye on wet mils during application.

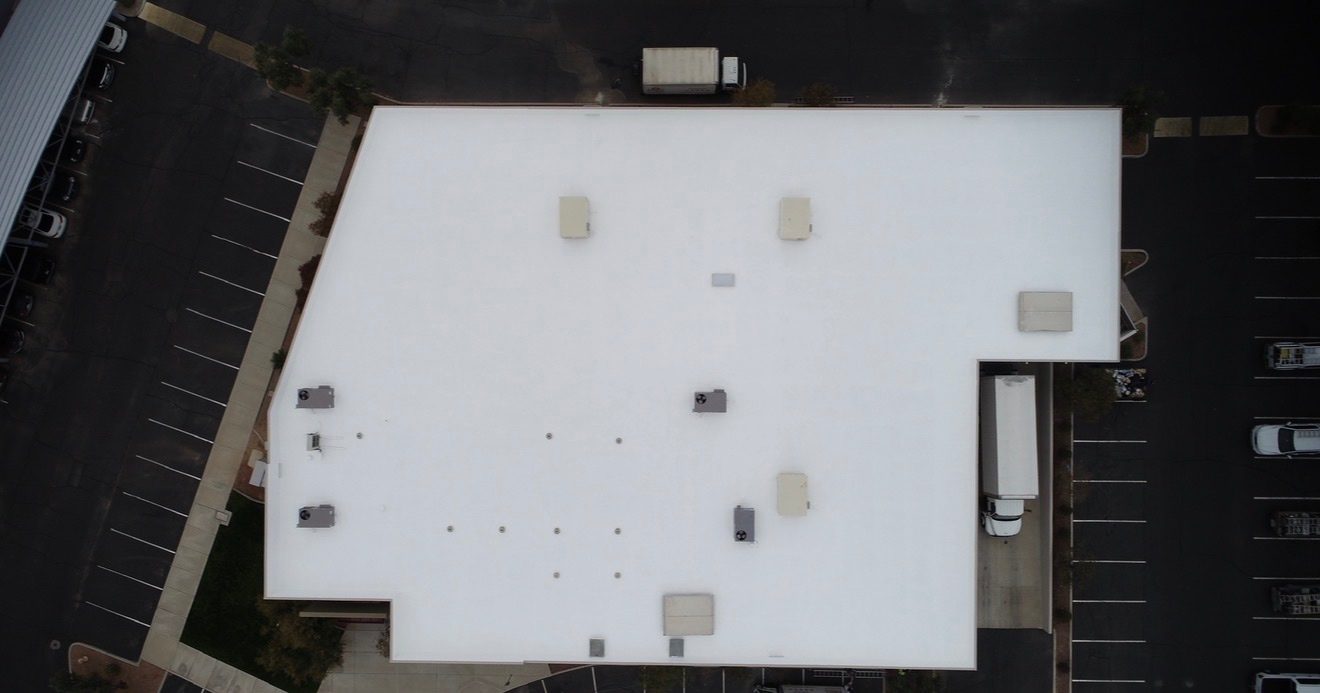

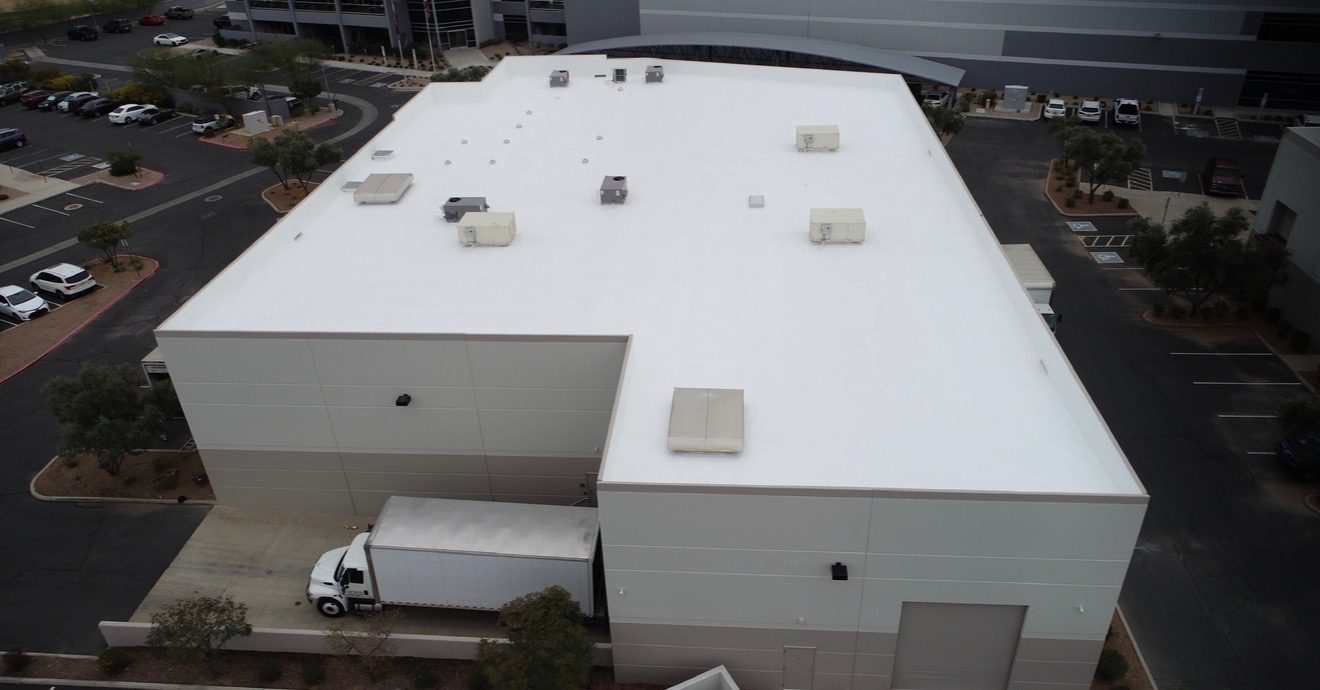

The ResultA bright, watertight, warranty-backed roof for another decade
The finished roof looks nothing like what we walked. The chalky yellow surface is gone. In its place is a clean, uniform, reflective white AC100 elastomeric surface — the way a foam roof is supposed to look. Every HVAC curb sealed. Every vent stack primed and coated in. Every parapet transition watertight. And it's all backed by a 10-year warranty.
The Warranty10-Year Coverage — backed by Vanguard, not a third party
This recoat is covered by a 10-year warranty issued directly by Vanguard Roofing AZ. If the coating fails or a leak develops during the warranty term, we come fix it — no third-party claims process, no manufacturer hand-offs, no fine-print exclusions that mysteriously void coverage after the first monsoon. Our work, our warranty, our name on the paperwork.
Why recoat now beats replace later on Arizona foam roofs
Chandler foam roofs have a predictable lifecycle. The foam itself is one of the most durable substrates in commercial roofing — but it needs a working elastomeric topcoat to survive Arizona's UV. When the topcoat starts to chalk off (usually between year 8 and year 12), you have a narrow window to recoat before the foam itself starts to break down. Recoat inside that window and you extend the entire roof for another decade at a fraction of tear-off cost. Miss the window and you're paying for a full replacement. On this 15,000 sq ft industrial building, that's the difference between a manageable capital expense and a six-figure emergency.
About the PropertyIndustrial building in South Chandler
The AV Dimensions building is a 15,000 sq ft industrial facility in Chandler's south industrial corridor — the kind of tilt-up concrete building that dominates the Chandler and Gilbert industrial market. Buildings like this take a beating: rooftop HVAC serving warehouse and office space, forklift traffic and dock activity that vibrates the structure daily, and constant heat load in the summer. The roof is the single most important asset on the building. Keep it recoated on schedule and it will run for 25 to 30 years. Miss the recoat window and it becomes the biggest capital line item on the P&L.
If you own or manage an industrial or warehouse building in Chandler, Gilbert, Tempe, or anywhere else in the Phoenix metro and your foam roof is starting to yellow, chalk, or show ponding water, we'd be glad to fly it with a drone and give you an honest recoat-vs-replace assessment. See our industrial & warehouse roofing services →
