Case Study: 15,000 SF Foam-Over-Foam Recover — Venue 8600 POA, North Scottsdale
Venue 8600 sits at 8600 E Anderson Dr in North Scottsdale — inside the Kierland commercial corridor between the McDowell Mountains and Loop 101, a market segment where the commercial buildings tend to be well-maintained, HOA-owned, and roofed to last. When the property owners association came to us for this 15,000 square-foot job, the existing foam roof was still structurally sound but overdue for a real recover. We specified a full foam-over-foam recover: new polyurethane foam sprayed directly over the existing foam substrate, followed by two coats of ARMORCOAT AC100 white elastomeric with a 10-year no-leak warranty. The result is essentially a brand-new foam roof on top of the old one, without a costly tear-off.
Project SnapshotVenue 8600 POA — North Scottsdale, AZ
The Kierland corridor in North Scottsdale — the stretch of commercial real estate roughly bounded by Scottsdale Road, Greenway-Hayden Loop, and the 101 — is one of the most competitive commercial markets in Arizona. Tenants expect Class-A finishes, HOAs expect Class-A maintenance, and owners' associations have long budget planning cycles that consistently prioritize roof maintenance on schedule. Venue 8600 at 8600 E Anderson Dr fits squarely in that model: a well-run POA-governed commercial property, an existing foam roof that had reached the end of its coating cycle, and a board decision to invest in a real recover rather than a defer-and-patch cycle.
Venue 8600 — 15,000 SF Foam-Over-Foam Recover, North Scottsdale
| Property | Venue 8600 — Property Owners Association |
| Address | 8600 E Anderson Dr, Scottsdale, AZ 85255 |
| Roof Size | 15,000 sq ft |
| Existing System | Aged polyurethane foam roof |
| Scope | Full foam-over-foam recover — new foam plus 2 coats AC100 |
| Foam System | ArmorShield 2500 polyurethane spray foam |
| Coating System | ARMORCOAT AC100 White Elastomeric — 2 coats |
| Client Engagement | Direct POA/HOA board hire |
| Warranty | 10-Year No-Leak |
| Contractor | Vanguard Roofing AZ — since 1957 |
The ProjectThe building, the client, and what we were solving for
The Kierland corridor in North Scottsdale — the stretch of commercial real estate roughly bounded by Scottsdale Road, Greenway-Hayden Loop, and the 101 — is one of the most competitive commercial markets in Arizona. Tenants expect Class-A finishes, HOAs expect Class-A maintenance, and owners' associations have long budget planning cycles that consistently prioritize roof maintenance on schedule. Venue 8600 at 8600 E Anderson Dr fits squarely in that model: a well-run POA-governed commercial property, an existing foam roof that had reached the end of its coating cycle, and a board decision to invest in a real recover rather than a defer-and-patch cycle.
HOA and POA-governed commercial properties are one of our strongest client segments — a fact reflected across our case study portfolio. Board-governed properties value transparent scope, drone documentation of the finished work for the reserve study, and a written 10-year warranty that lives longer than the current board term. For more on how we handle Scottsdale commercial and HOA work, see our Scottsdale commercial roofing service area.
The SystemWhy foam-over-foam is the right recover for a sound substrate
When an existing polyurethane foam roof has reached the end of its coating cycle but the foam substrate itself is still sound, the owner has two paths. Path one is a straight recoat — clean, patch, and add two coats of AC100. That works when the foam is intact and the coating is what's aged out. Path two is a foam-over-foam recover — spray a fresh layer of polyurethane foam over the entire existing roof and then coat. On this Venue 8600 project, the POA board and our team chose foam-over-foam because the existing foam had lost some thickness and R-value over the years, and adding fresh foam brought both the insulation performance and the surface freshness back to new-install standard.
- ArmorShield 2500 spray polyurethane foam. Applied directly over the cleaned existing foam substrate — a seamless new membrane and additional insulation layer in one pass.
- Two coats of ARMORCOAT AC100. First coat directional, second coat cross-directional at 90 degrees to guarantee full-mil thickness and the 10-year no-leak warranty. See our roof coating services for the full AC100 spec.
- No tear-off — no dumpsters, no landfill. The existing foam substrate stayed in place, saving the POA both the cost and the disruption of a full tear-off replacement — no dumpsters in the parking lot, no interior exposure during the reroof.

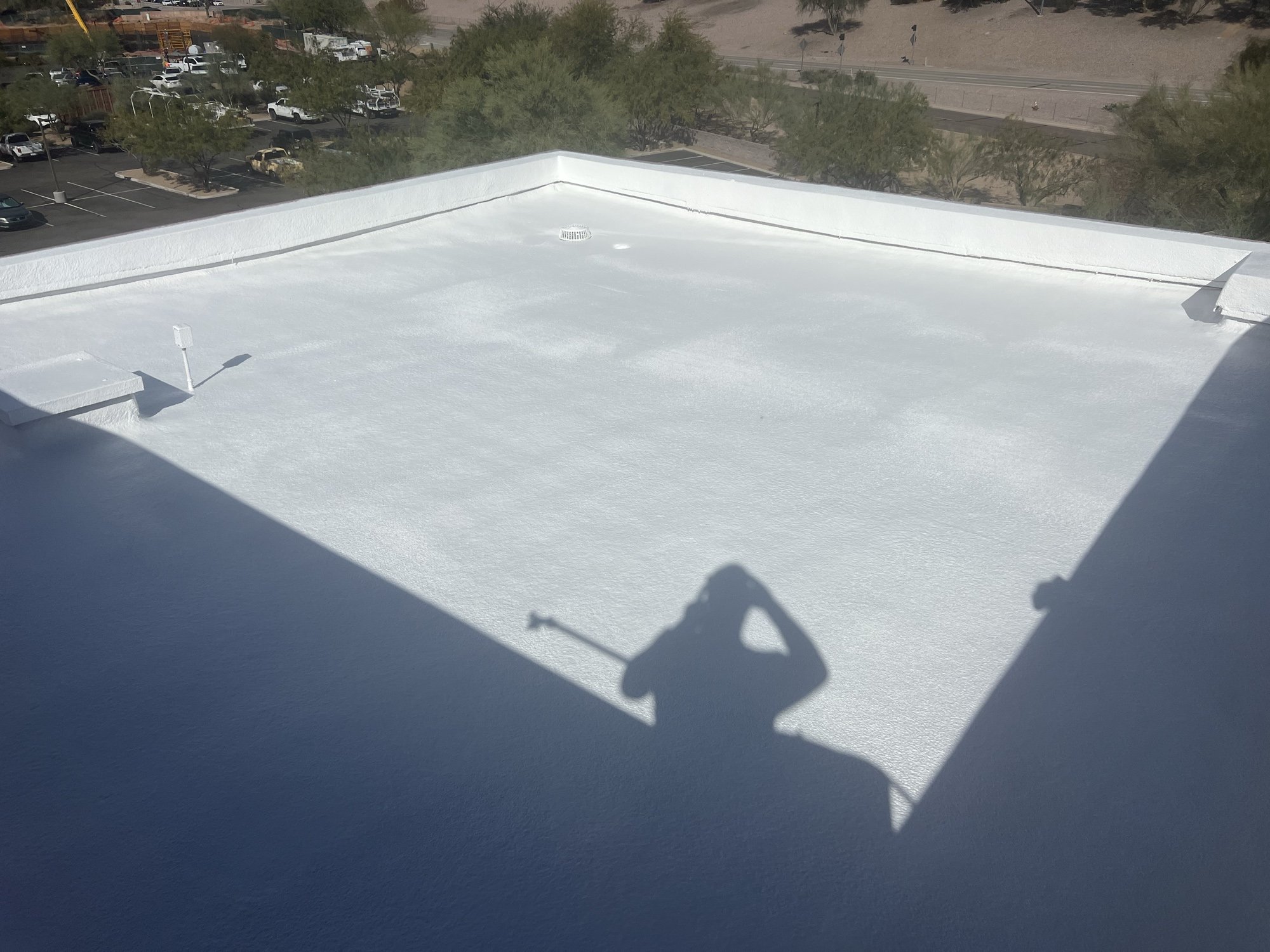

- Continuous seamless membrane. Foam sprays as a monolithic layer over the entire roof plane and up every parapet wall, HVAC curb, and penetration — no seams to leak, no laps to fail, no thermal bridges.
Our ApproachHow we sequenced a foam-over-foam recover with tenants in place
A foam-over-foam recover is technically simpler than a tear-off replacement but it demands the same discipline on substrate prep, application quality, and warranty submission. Here's how we sequenced the 15,000 sq ft scope with the property tenants operating below:
Scope of work — the foam-over-foam recover sequence
- Substrate survey and clean. Walked the existing foam roof, verified structural soundness, marked any localized failures for cut-and-patch before the fresh foam pass, and power-washed the entire 15,000 sq ft to a clean substrate.
- Cut and patch localized failures. Any areas of the existing foam that had delaminated or gone soft got cut out and patched with new polyurethane foam before the fresh coat went over the top — the recover is only as good as the substrate underneath.

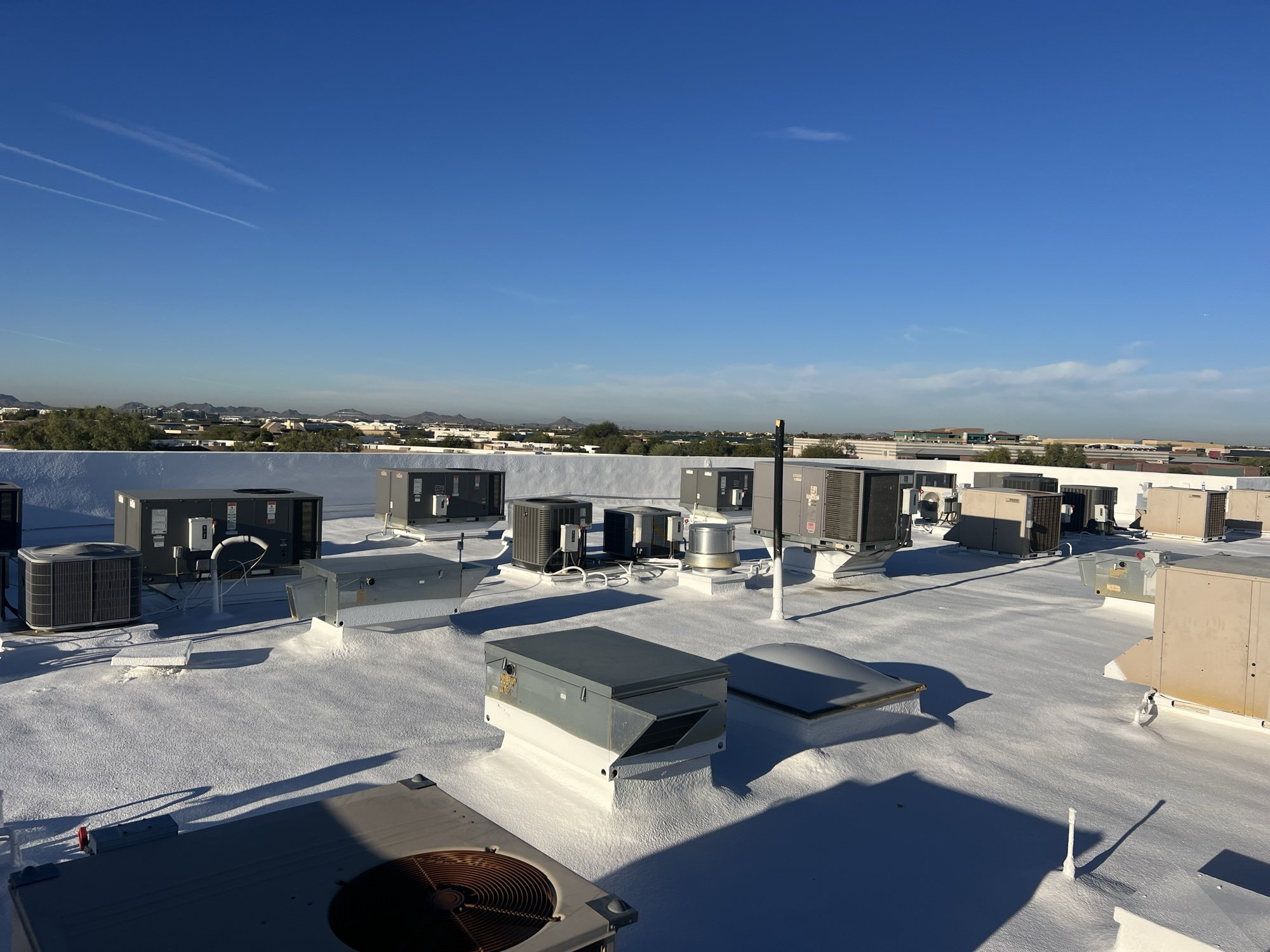

- Spray fresh ArmorShield 2500 polyurethane foam. Applied the full-thickness fresh foam layer across the entire 15,000 sq ft — over the parapets, wrapping every HVAC curb and penetration, self-flashing the roof envelope in one continuous membrane.
- First coat of ARMORCOAT AC100. Directional first-coat spray across the freshly sprayed foam — sealing the substrate and providing base film thickness.
- Second coat cross-directional. Second AC100 pass at 90 degrees to the first — full-mil thickness for the 10-year no-leak warranty and pinhole-free coverage across the entire recover.
- Warranty registration and drone documentation. Registered the 10-year no-leak warranty in the POA's name, delivered drone documentation of the finished roof for the association's reserve study, and walked off site with a clean property.
Because the POA board engaged us directly, the coordination was straightforward: one contract, one scope, one warranty, and one point of contact for the board's property manager over the life of the coating.
The DetailWhy HOA and POA boards should ask about foam-over-foam before quoting a tear-off
Board-governed properties often have to weigh capital-line proposals from multiple roofers, and there's a persistent misconception in the market that the only 'permanent' fix for an aging roof is a full tear-off replacement. That's true when the substrate is structurally compromised — but on many Scottsdale HOA and POA properties, the foam substrate is still sound and a properly-executed foam-over-foam recover delivers essentially the same performance and warranty as a new-install foam roof, at a fraction of the tear-off price. That's the conversation we recommend every board have before signing off on a full replacement.
For an HOA or POA board weighing options, the honest question to ask a bidding roofer is: is the existing foam sound enough to recover over, or is a tear-off truly necessary? A contractor who reflexively quotes a tear-off without walking that question with you is either not looking carefully or is bidding for the bigger job. Vanguard walks that decision honestly on every board-governed project — sometimes the answer is recover, sometimes it's replace, and the reserve study looks very different depending on which it is.
The Warranty10-year no-leak warranty on the finished foam-over-foam system
The Venue 8600 recover carries our 10-year no-leak warranty on the finished polyurethane foam and ARMORCOAT AC100 coating system. The warranty is identical to what a new-install foam roof would carry — because the recover, done correctly, delivers essentially a brand-new foam roof over the existing substrate. That warranty consistency is what makes foam-over-foam a defensible choice for an HOA or POA board weighing this project against a full tear-off.
The Results15,000 sq ft North Scottsdale roof recovered — reserve study reset for another decade

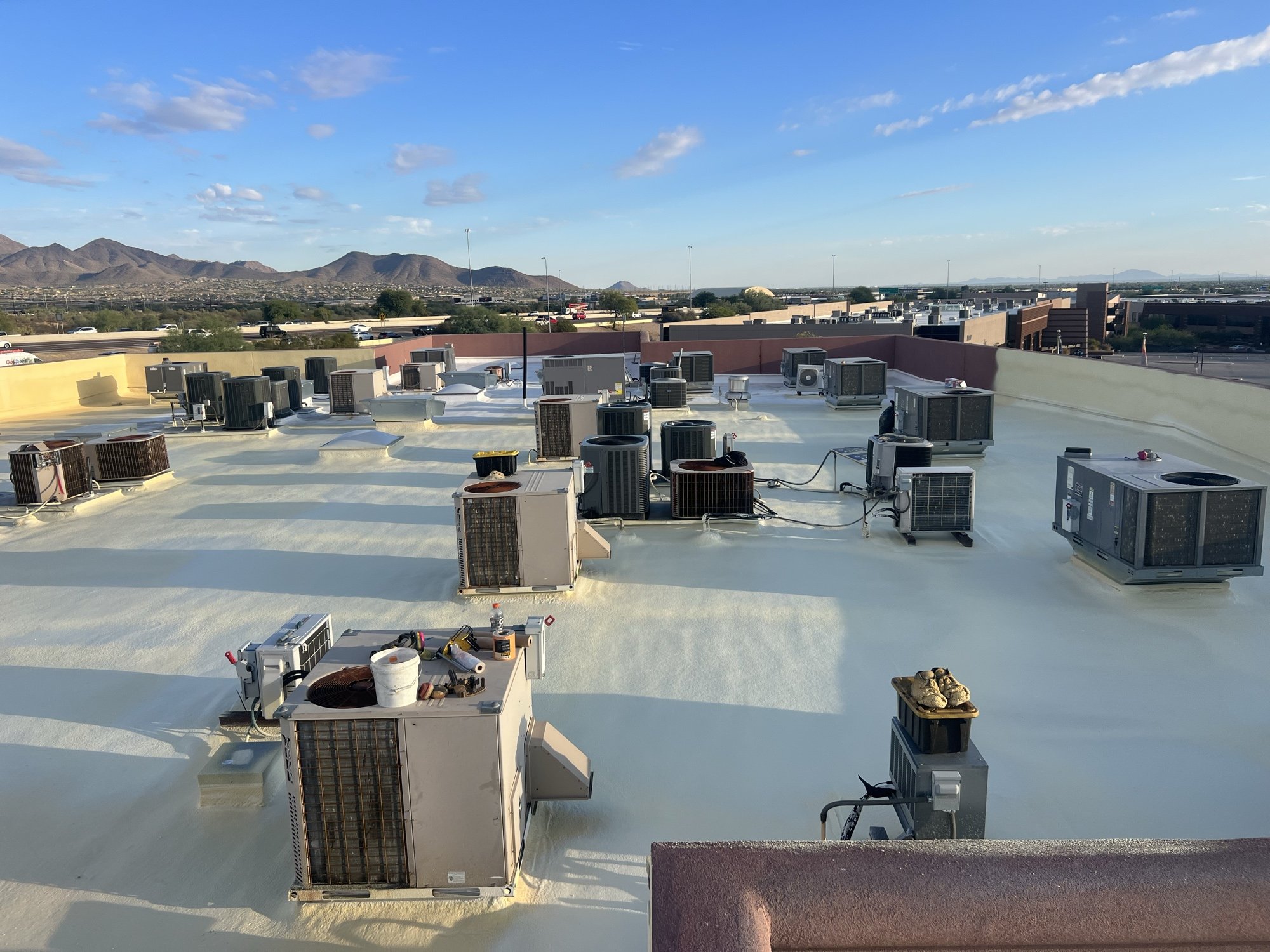

The Venue 8600 property operates today under a fresh polyurethane foam roof with two coats of ARMORCOAT AC100 and a 10-year no-leak warranty in the POA's name. The board's next major roofing capital line item just moved out ten years — and the McDowell Mountain backdrop shots from our drone documentation now live in the association's reserve study documentation for the next decade of board turnover.
Photo GalleryProject photos
FAQCommon questions
What is a foam-over-foam recover?
A foam-over-foam recover is a re-roofing method where a fresh layer of spray polyurethane foam is applied directly over an existing foam roof, followed by two coats of elastomeric coating. It's the right tool when the existing foam substrate is structurally sound but has lost thickness, R-value, or surface integrity over the years. It delivers essentially a new foam roof without tear-off cost or disposal impact.
When is foam-over-foam appropriate vs. a full tear-off?
Foam-over-foam is appropriate when the existing foam is structurally sound — no wet insulation, no delamination from the deck, no structural rot beneath. When the substrate is compromised (moisture entrapment, deck rot, insulation failure), a tear-off is the correct call. On Venue 8600 the existing foam substrate was sound, so recover was the right and cost-effective choice. Every project walks this decision honestly with the owner or board.
How much does an HOA or POA foam recover cost in Scottsdale?
A foam-over-foam recover typically runs a fraction of a full tear-off and replacement — often 40 to 60 percent of the replacement number, depending on substrate condition, roof size, and complexity. On a POA reserve study line item, that cost delta can be a decisive factor. See our blog on the true cost of commercial roof replacement in Arizona for more context.
Do you work directly with HOA and POA boards?
Yes — HOA and POA-governed commercial properties are one of our strongest client segments. We understand board procurement cycles, reserve study documentation requirements, and multi-year budget planning. We deliver drone documentation of every completed roof so the association has visual reserve records for the next decade of board turnover. See our Lofts on Fillmore case study for another HOA-governed project.
How long will a foam-over-foam recover last?
The two-coat AC100 coating carries a 10-year no-leak warranty, and typically delivers 10 to 15 years of service life in Arizona before it needs to be refreshed. Once the coating reaches end-of-life, the roof can simply be recoated again for another decade — extending the useful life of the recovered assembly indefinitely on a maintenance cycle instead of a full tear-off cycle.
