Case Study: GAF TPO New Construction — Verde at Cooley Station Retail Center, Gilbert AZ
A brand-new multi-tenant retail box in one of Gilbert's fastest-growing developments, a bare steel deck waiting on a roof, and a general contractor's schedule that couldn't slip. We installed 16,200 square feet of 60-mil GAF mechanically fastened TPO over R25 poly iso in 10 working days — tapered crickets for positive drainage, manufactured pipe cones, field-wrapped curbs, and walk pads at every service point — and registered a 20-Year GAF NDL (No Dollar Limit) warranty on the finished system.
Project SnapshotThe Verde at Cooley Station roof at a glance
Verde at Cooley Station is one of Gilbert's fastest-growing mixed-use retail destinations, and Building F is a multi-tenant retail box built for a 20-plus-year service life. Ascent, the general contractor, engaged Vanguard Roofing AZ directly for the roof assembly over the new steel deck. Here are the project facts at a glance.
Verde at Cooley Station — Building F, Gilbert, AZ
| Property | Building F, Verde at Cooley Station (retail center) |
| Location | Gilbert, Arizona |
| Roof Size | 16,200 sq ft total (13,200 roof + 3,000 parapet walls) |
| Substrate | Steel deck (new construction) |
| Insulation | R25 poly iso |
| System | 60-mil GAF Mechanically Fastened TPO |
| Timeline | 10 days |
| Investment | $10–$15 per sq ft |
| Warranty | 20-Year GAF NDL (No Dollar Limit) |
| General Contractor | Ascent |
| Completed | July 2026 |
The ProjectA new retail box in a fast-growing Gilbert corridor
Verde at Cooley Station sits at the heart of one of Gilbert's fastest-growing mixed-use developments, the kind of corridor where new retail, restaurant, and service tenants are lining up before the concrete has even cured. Building F is a multi-tenant retail box — a single-story steel structure designed to be divided among several tenants — and like every commercial building of its type, it needed a roof system engineered for a service life measured in decades, not years. In Arizona's climate, where a flat commercial roof bakes under relentless UV and 160-degree-plus surface temperatures for most of the year, that means starting with the right membrane, the right insulation, and the right detailing from day one.
Ascent, the general contractor building out Verde at Cooley Station, brought Vanguard in directly for the roof scope rather than routing it through a layered chain of subcontractors. That direct relationship matters on new construction: it means one accountable roofing contractor coordinating with the GC's schedule, one crew responsible for the whole assembly from the bare deck up, and one warranty registered at the end. Vanguard came onto the site with the steel deck in place and the building shelled — our job was to turn that open deck into a watertight, warranty-backed, tenant-ready roof without becoming the bottleneck in Ascent's construction schedule. For more on how we serve builders and property owners across the East Valley, see our Gilbert commercial roofing page.
The SystemWhy GAF TPO for new retail construction
When a new commercial roof is going down over an insulated steel deck, thermoplastic polyolefin — TPO — is the workhorse single-ply membrane of the modern era, and GAF's EverGuard TPO is one of the most proven systems on the market. GAF is North America's largest roofing manufacturer, and the reason we specified their TPO here comes down to three things: membrane grade, warranty tier, and how well the system suits new construction. See our full TPO roofing services for the broader picture on where TPO fits.
- 60-mil membrane — the pro spec. We installed 60-mil GAF TPO, not the thinner 45-mil grade often used on lighter-duty work. That extra thickness means more weathering layer above the reinforcing scrim, better puncture and traffic resistance, and eligibility for the longest warranties — exactly what a multi-tenant retail roof that will host HVAC service traffic for 20-plus years needs.
- Mechanically fastened — ideal for new construction. Screws and barbed plates lock the insulation and membrane to the steel deck, with fasteners concealed in the hot-air-welded seams. Over a new, dry, insulated steel deck this delivers excellent wind-uplift performance quickly and cost-effectively, keeping the GC's schedule on track.
- 20-Year GAF NDL warranty — rare in the industry. GAF's No Dollar Limit guarantee covers materials and labor with no dollar cap through year 20. Most contractors only offer standard TPO material warranties; the NDL is a premium tier that owners increasingly demand — and only GAF-certified installers can register it.
Property owners value the 20-year NDL warranty because it removes the guesswork from a roof's first two decades of life. Under a standard, material-only warranty, a failure leaves the owner covering the labor to fix it — often the larger share of the cost. Under GAF's NDL, both are covered. It's the difference between a piece of paper and a roof someone actually stands behind, and it's a direct extension of how Vanguard has done business since 1957.
Our ApproachThe 10-day new construction install, day by day
A new-construction roof is a sequenced assembly, and every layer has to go down clean and in order for the warranty to hold. Here's how the ten days ran on Building F, from the bare steel deck to a warranty-registered roof handed back to Ascent.
Project sequence — 10 days on site

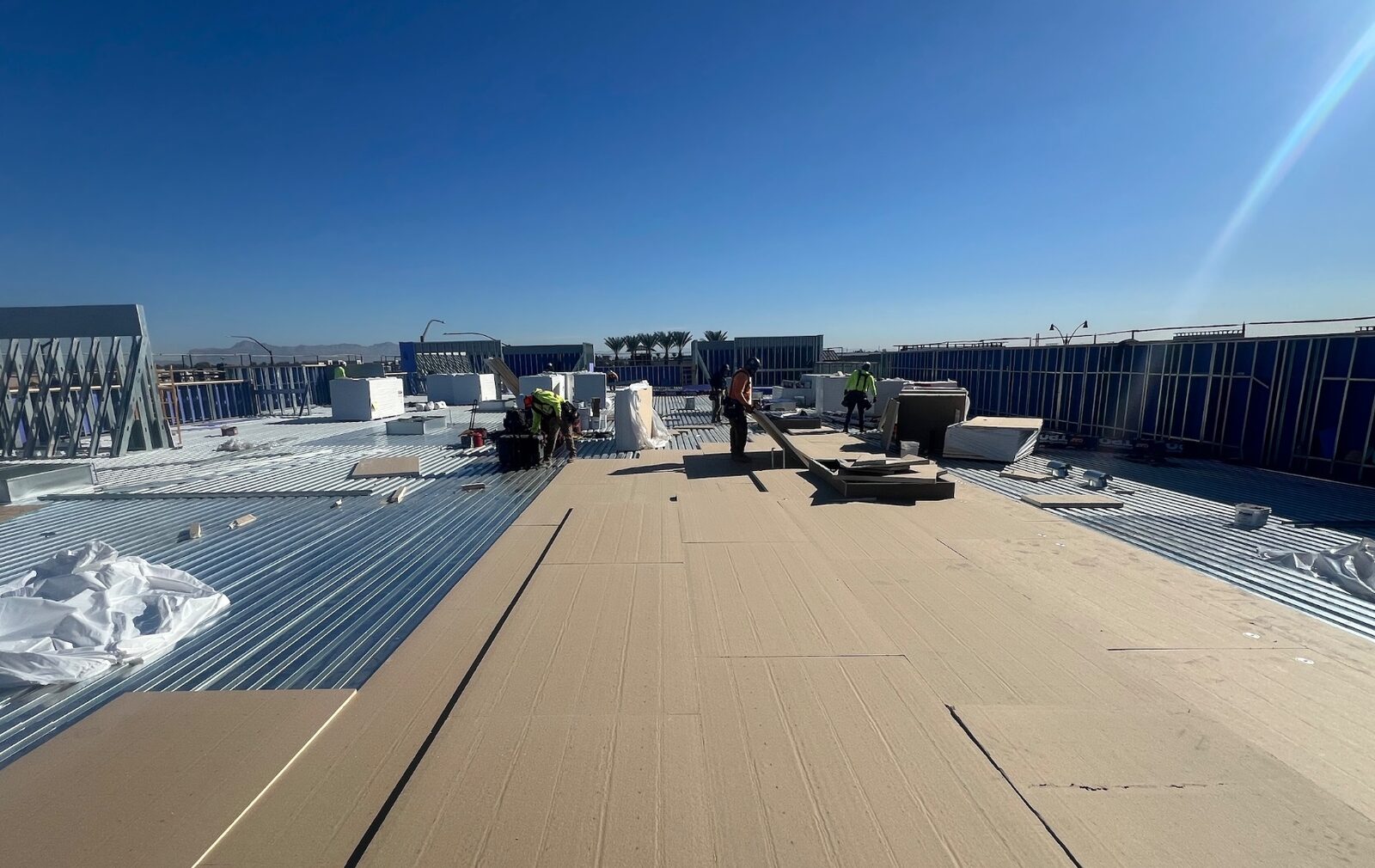

- Days 1–2 — Layout and R25 poly iso. We set the layout, ran the moisture barrier, and installed R25 poly iso insulation board with screws and washer plates per GAF spec — then set tapered polyiso crickets in the corners for positive drainage.
- Day 3 — Roof hatch. Installed the 30"×36" roof hatch for crew safety and future maintenance access.
- Days 4–7 — 60-mil GAF TPO. Rolled out the 60-mil GAF TPO membrane, mechanically fastened it to the GAF pattern, hot-air welded every seam, and verified each weld with a probe test.
- Day 8 — Flash every penetration. Manufactured pipe cones, field-wrapped HVAC curbs in TPO, and TPO-into-drain terminations sealed with TPO tape and adhesive.
- Day 9 — Walk pads. Installed walk pads from the access door to and around the AC units, plus at the operational side of the outlying units, to protect the membrane from foot traffic.
- Day 10 — Punch list and warranty. Full punch list, seam probe QC across the whole roof, and submission of the warranty registration to GAF.
Because Vanguard was hired directly by Ascent, we could compress this sequence around the GC's broader construction schedule without hand-offs or finger-pointing — the roof was watertight and warranty-registered on schedule, clearing the way for tenant fit-out.
The DetailThe cricket system — why it matters more than owners realize
On the plans (page 2), the corners of Building F carry a positive-slope cricket system — tapered polyiso wedges that push water toward the drains instead of letting it pool. It's easy to overlook, but crickets are one of the most important details on any flat roof, and here's why: ponding water is the number-one cause of premature TPO failure in Arizona. Water that sits on a membrane for 48 hours or more accelerates UV degradation, encourages algae and dirt buildup, and stresses seams and flashings — and standing water for that long voids most manufacturer warranties outright.
GAF's NDL guarantee is explicit on this point: the system requires proper drainage, so the cricket system isn't an optional upgrade — it's a condition of the warranty. By building positive slope into the corners with tapered polyiso rather than relying on the structural deck alone, we eliminated the low spots where water would otherwise collect. That's the kind of detail that separates a roof that lasts its full 20 years from one that starts failing at year seven. If you're weighing TPO against a foam-and-coating system for a flat roof, our guide to TPO vs. foam roofing in Phoenix walks through how drainage factors into each.
CraftsmanshipDetails that separate pros from amateurs
Flat roofs almost never fail in the open field — they fail at the details. Every penetration, curb, and drain is a potential leak point, and how those are handled is what separates a professional install from a warranty claim waiting to happen. On Building F we handled all of them the right way:
- Manufactured pipe cones, not field-formed. Factory-made TPO pipe cones give a clean, consistent, warrantable seal at every roof penetration — eliminating the flashing failures that plague hand-cut field wraps.
- Field-wrapped HVAC curbs in TPO. Wrapping the curbs in the membrane itself, rather than relying on separate metal flashing, removes the metal-to-membrane joints that are classic flashing failure points.
- Walk pads at every service point. HVAC techs will be walking this roof for the next two decades. Walk pads from the access door to and around the AC units protect the membrane from the concentrated foot traffic that would otherwise wear it thin.
- TPO-embedded drain terminations. Terminating the membrane into the drains with TPO tape and adhesive prevents debris buildup and the drain-line leaks that undermine an otherwise sound roof.
None of these details are visible from the parking lot, and none of them are what wins a bid. They're what earns the warranty and keeps the roof watertight for its full service life — the reason Vanguard is a GAF, Versico, and ARMORCOAT certified installer rather than a low-bid commodity contractor.
The WarrantyThe 20-year GAF NDL — what it actually covers
The system on Building F is backed by a 20-Year GAF NDL guarantee, the top tier GAF offers. NDL stands for No Dollar Limit, and the distinction is everything. A standard TPO warranty typically covers only the membrane material, prorated over time — if a defect causes a leak, the owner still pays for the labor to tear into and repair the roof, which is usually the bigger number. Under the NDL, GAF covers both materials and labor with no dollar cap for the full 20-year term.
There's a catch that works in the building owner's favor: only GAF-certified commercial contractors can register the NDL guarantee. It's not something any contractor can offer — it requires the manufacturer to have vetted and approved the installer. Vanguard's GAF certification (referenced across our site and on our about page) is exactly what lets us extend this top-tier coverage. As a family-owned Arizona contractor operating since 1957 under founder Robert Wilson, standing behind our own work with a manufacturer-backed NDL is the whole point.

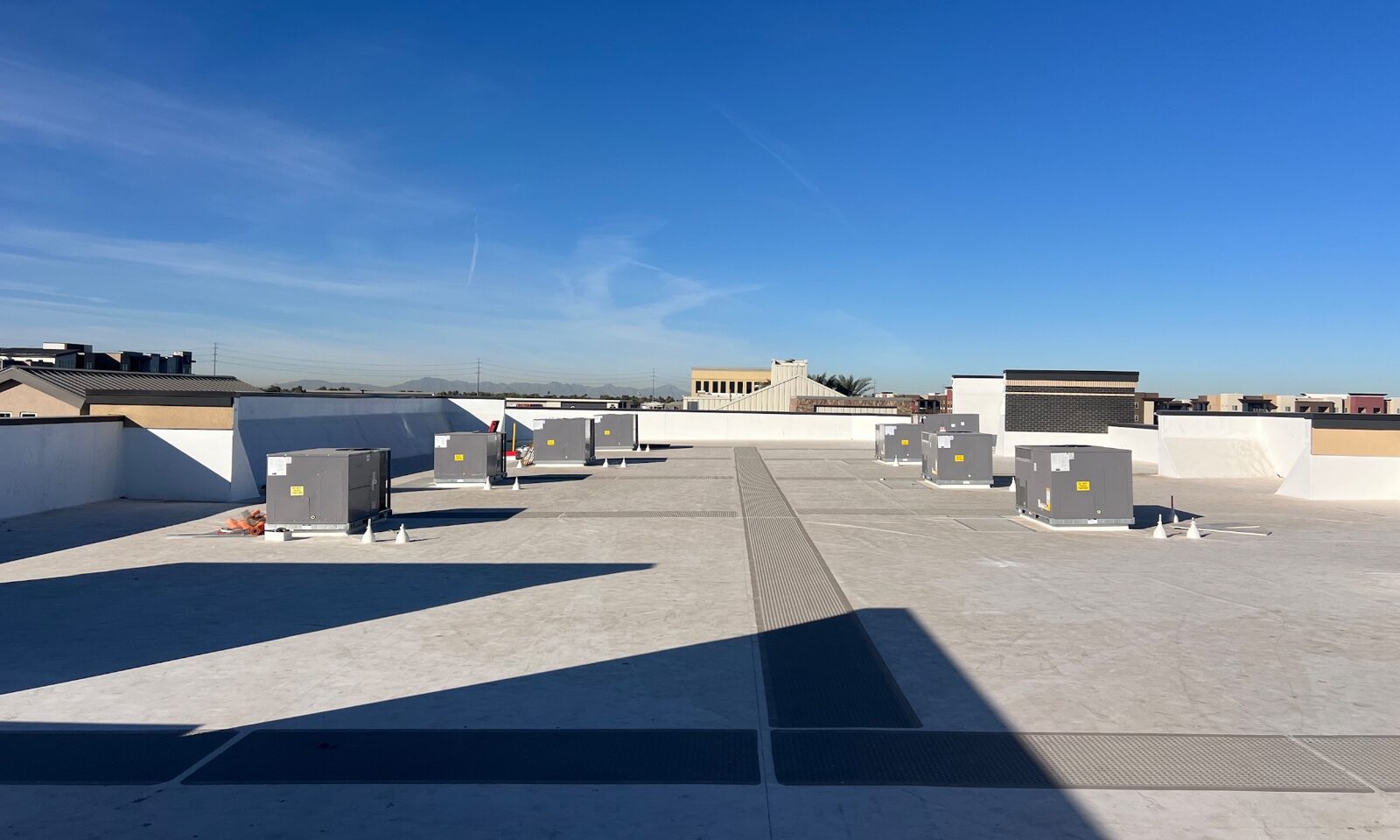

The Results16,200 sq ft, 10 days, zero deficiencies
The numbers tell the story of a clean, on-schedule new-construction roof that never became the GC's problem:
Building F was handed back to Ascent watertight, warranty-registered, and ready for tenant improvements — the roof cleared its post-install inspection with zero deficiencies, and the 20-year NDL guarantee was on file before the crew left the site. That's what a professionally sequenced new-construction TPO install looks like, and it's the standard we hold on every commercial project across the Phoenix metro.
Photo GalleryFrom bare steel deck to finished GAF TPO
FAQGAF TPO new construction — common questions
What is a GAF NDL warranty?
NDL stands for No Dollar Limit. A GAF NDL guarantee covers both materials and labor with no dollar cap for the full warranty term — 20 years on the Verde at Cooley Station system — if a covered defect causes a leak. That's very different from a standard material-only warranty, which pays out only the prorated cost of the membrane and leaves the building owner to fund the labor to fix it. Only GAF-certified commercial contractors like Vanguard Roofing AZ can register the top-tier NDL guarantee, which is one of the main reasons certification matters when you choose an installer.
What's the difference between 60-mil and 45-mil TPO?
The mil rating is the membrane thickness — 60-mil TPO is roughly one-third thicker than 45-mil. That extra thickness means a thicker weathering layer above the reinforcing scrim, which translates into longer service life, better puncture and traffic resistance, and eligibility for longer manufacturer warranties. On commercial and industrial roofs that will see HVAC techs and service traffic for decades, 60-mil is the professional spec. We installed 60-mil GAF TPO on Building F for exactly these reasons.
Why mechanically fastened TPO instead of fully adhered for new construction?
Mechanically fastened TPO uses screws and barbed plates to attach the insulation and membrane to the steel deck, with the fasteners hidden in the welded seams. On new construction over an insulated steel deck it's fast, cost-effective, and delivers excellent wind-uplift performance when installed to the GAF fastening pattern. Fully adhered systems use bonding adhesive instead and are preferred where fastener penetrations are undesirable or on very large industrial buildings — see our Talis Industrial case study for a fully adhered Versico example. For a single-story retail box like Building F, mechanically fastened was the right call.
Does Vanguard work with general contractors on new construction?
Yes. Ascent, the general contractor on Verde at Cooley Station, hired Vanguard Roofing AZ directly for the roof scope. We routinely work as the roofing subcontractor on new commercial construction, coordinating our schedule with the GC's so the roof is watertight and warranty-registered without holding up tenant fit-out. As a family-owned, AZ ROC-licensed contractor (CR-42 #289663, R-62 #283025) that has served Arizona since 1957, we bring the documentation, certified crews, and manufacturer approvals GCs need to close out a project cleanly.
How long does GAF TPO last in Arizona?
A properly installed 60-mil GAF TPO roof will typically deliver 20 to 30 years of service life in Arizona when it's detailed correctly and drains properly. The keys in our climate are membrane thickness, positive drainage that eliminates ponding water, and clean flashing at every penetration — all of which the Verde at Cooley Station system was built to. The 20-year GAF NDL guarantee covers the system through that first two decades, and the roof itself can carry well beyond the guarantee term with routine maintenance.
