38,000 Sq Ft Strip Mall Foam Roof Restoration at 51st Ave & Thunderbird
A 20-year-old spray foam roof on a busy Glendale retail center was leaking through abandoned AC penetrations and breaking down at the surface. We cleaned, repaired, and recoated the entire system with ARMORCOAT AC100 — and backed it with a 10-year No Leak Warranty. Here's exactly what we did and what it took.
The ChallengeA 20-year-old foam roof with two decades of deferred maintenance
The property is a 38,000 square foot multi-tenant retail center at 51st Avenue and Thunderbird Road in Glendale, Arizona. The original spray polyurethane foam (SPF) roof system was installed roughly 20 years ago — and for most of that time, the only attention it received was reactive: a patch here when something dripped, a tarp there during monsoon season.

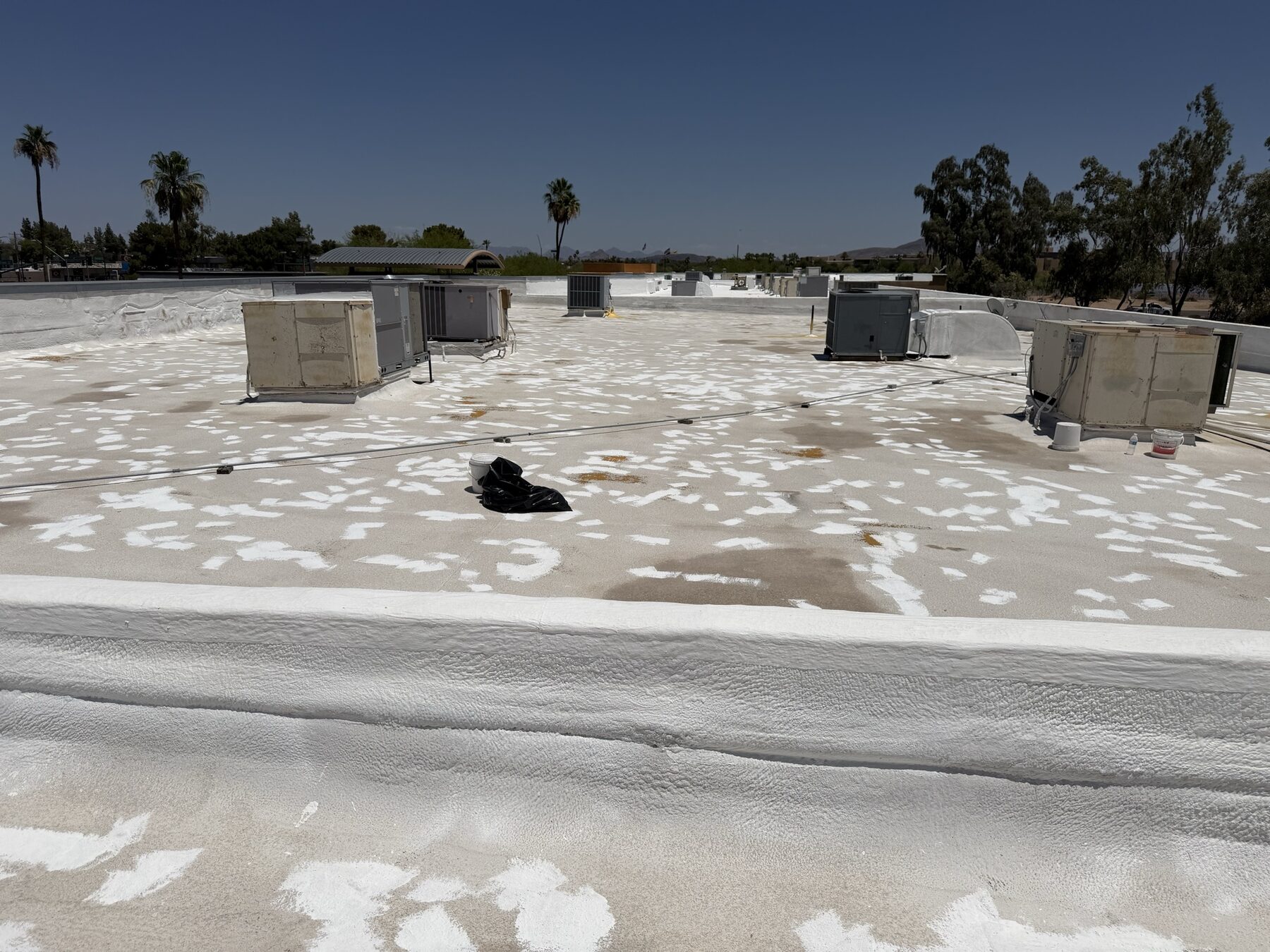

By the time we walked the roof for our initial inspection, the system was telling us a story you can read in the photos below. The protective elastomeric topcoat had largely chalked off and worn through. The foam beneath it was dirty, oxidized, and showing surface erosion across the entire 38,000 square feet. Cracks, splits, and pinholes had opened up where the foam had aged past the point of self-healing. Low spots had developed where ponding water sat for days after every storm.
Worse, the roof had become a graveyard of abandoned mechanical equipment. Over two decades of tenant turnover and HVAC upgrades had left dead AC units, disconnected refrigerant lines, capped electrical conduit, abandoned plumbing stacks, and loose wires running everywhere. Each one of those abandoned penetrations was a potential leak source — and several of them were active. Multiple tenants underneath the AC down-draft locations were reporting persistent ceiling stains.
Before we could even think about restoration, the roof had to be cleared. We hauled off a full dump trailer of debris, dead equipment, and decommissioned mechanical parts. Only then could we accurately assess what was repairable and what needed to be cut out.

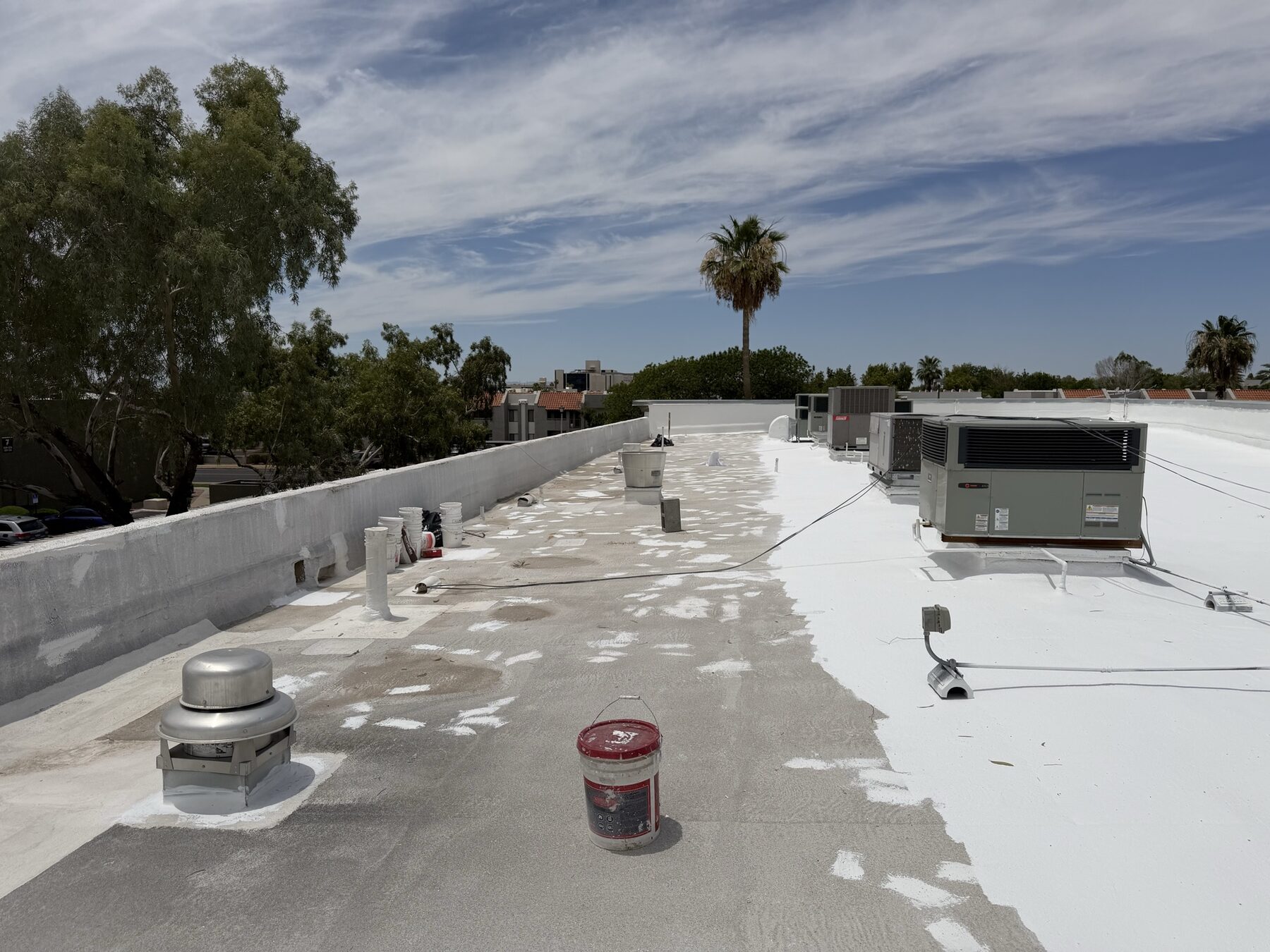

What We FoundBefore: dirty foam, abandoned penetrations, and active leaks
The ScopeWhat we did — start to finish
This was a full foam roof restoration, not a patch job. Our goal was simple: take a 20-year-old system that was at the end of its first life and reset the clock for another decade with a warranty to match. Here's exactly what the scope covered:
Project scope of work
- Debris removal: Hauled off one full dump trailer of dead AC units, capped lines, abandoned conduit, and 20 years of accumulated debris
- Surface cleaning: Pressure-washed the entire 38,000 sq ft surface to remove chalk, dirt, and contaminants — critical for coating adhesion
- Low-spot leveling: Raised every ponding area with new spray foam to restore positive drainage to roof drains and scuppers
- Crack, split, and pinhole repair: Filled every crack, split, and hole in the existing foam — by hand, one defect at a time
- AC down-draft sealing: Sealed every active AC unit down-draft where roof penetrations had been moving with thermal cycling — this is where the active leaks were originating
- Vent pipe and penetration sealing: Sealed every vent pipe, plumbing stack, and abandoned penetration with elastomeric mastic and reinforcing fabric
- Coating system: 2 full coats of ARMORCOAT AC100 white elastomeric — a tested, code-compliant restoration coating specifically formulated for SPF substrates in the Arizona climate
- Quality control: Mil-thickness checks during application; final walk with the property owner before warranty issue
- 10-year No Leak Warranty issued by Vanguard Roofing AZ upon completion

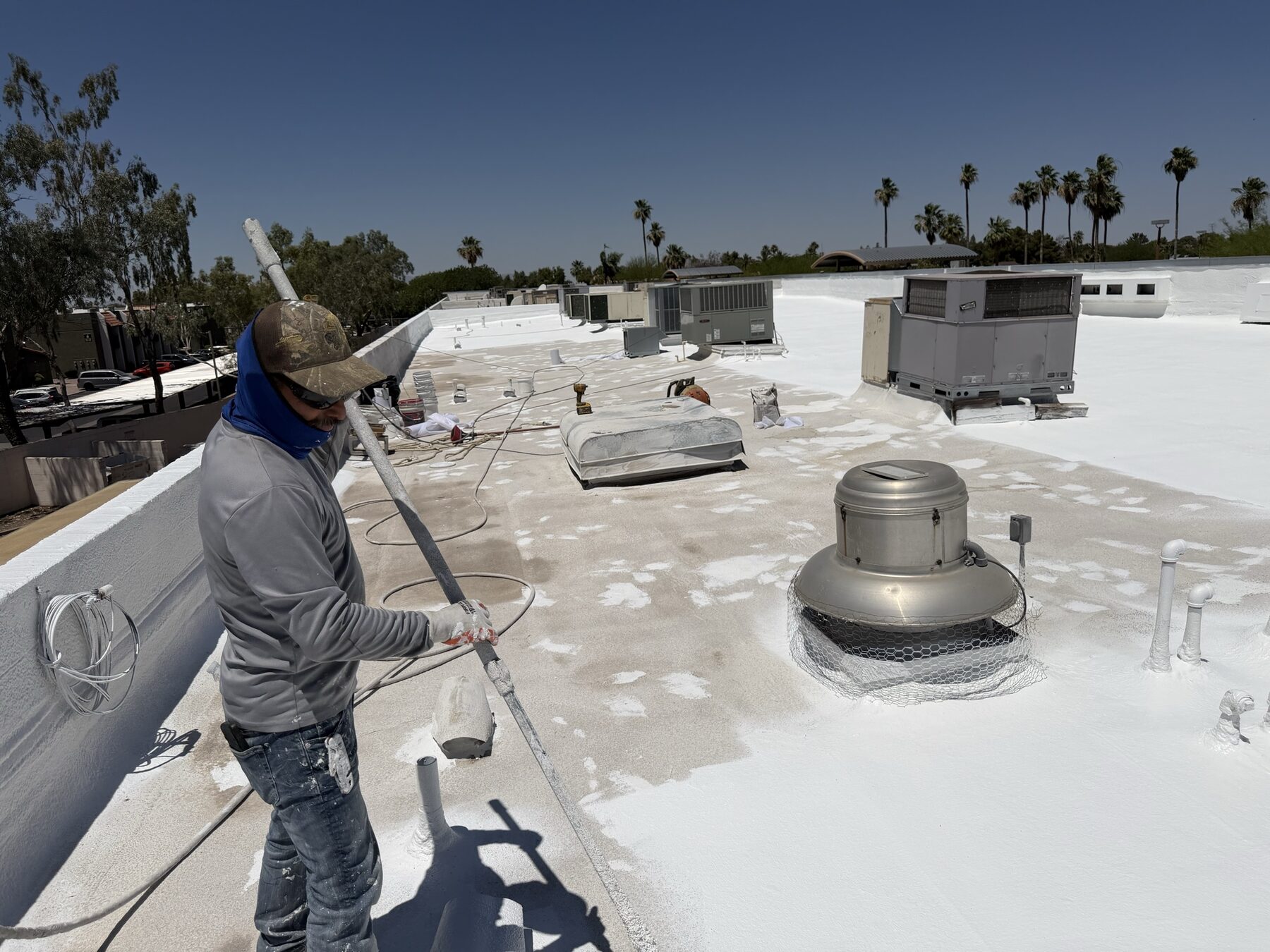

During the Job3 men, 8 days, and a lot of coating
Once the prep work was done, the actual coating application took the bulk of the project timeline. We ran a 3-man crew for 8 working days — covering the entire 38,000 square feet with two full coats of ARMORCOAT AC100 white elastomeric. The first coat seals and primes the repaired foam substrate. The second coat builds the protective film thickness that gives the system its 10-year warranty rating and its reflective performance.

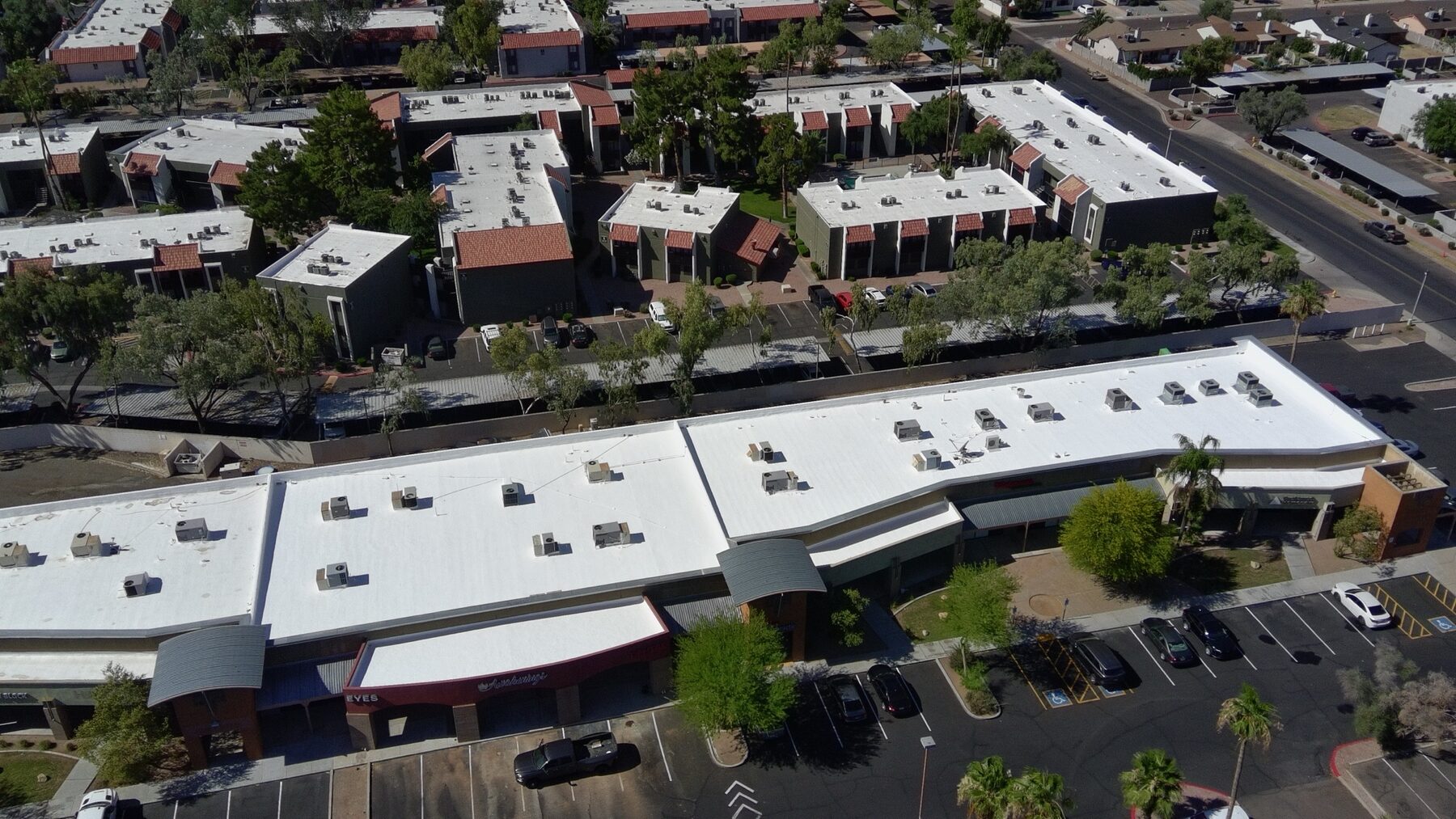

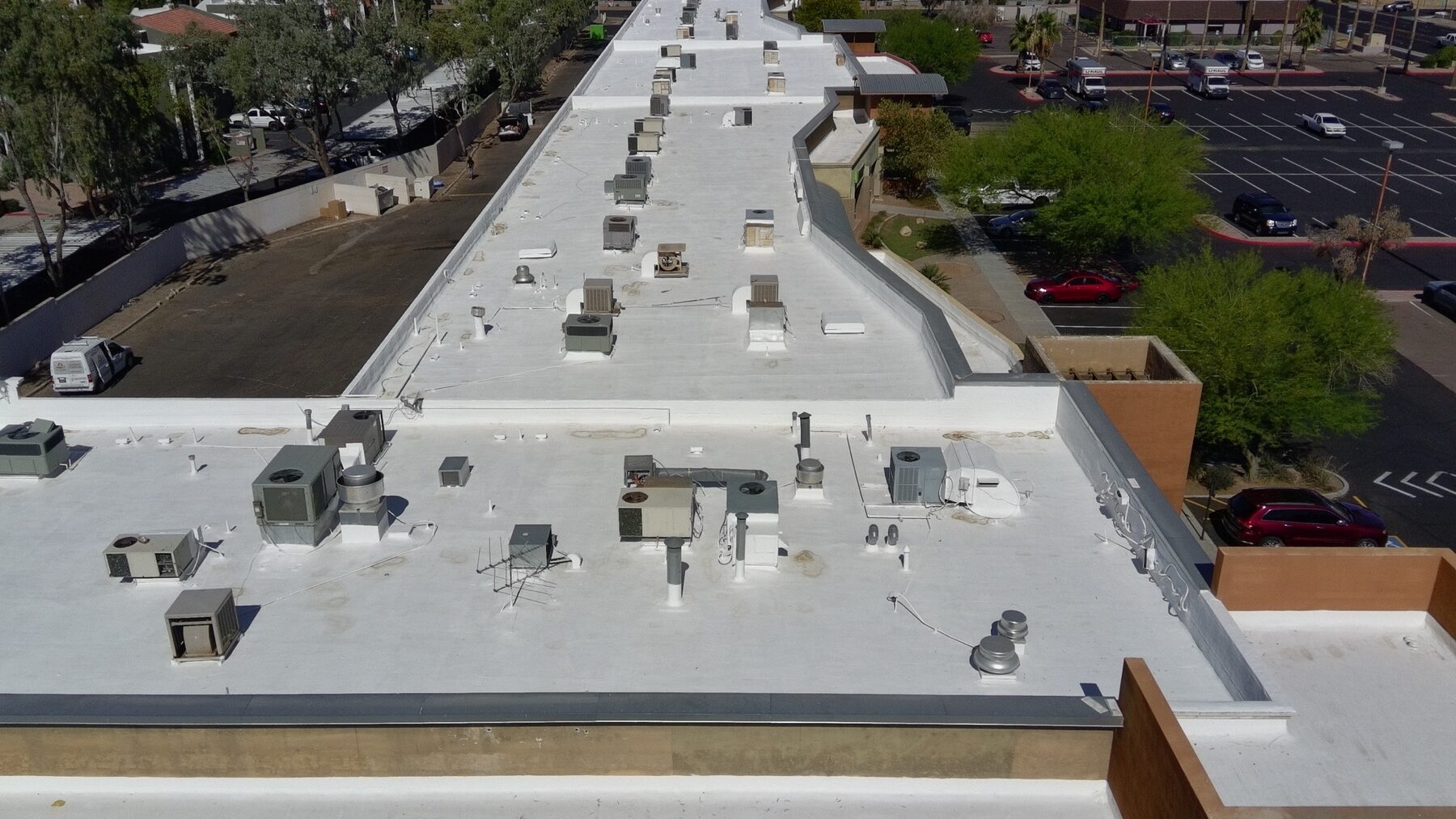

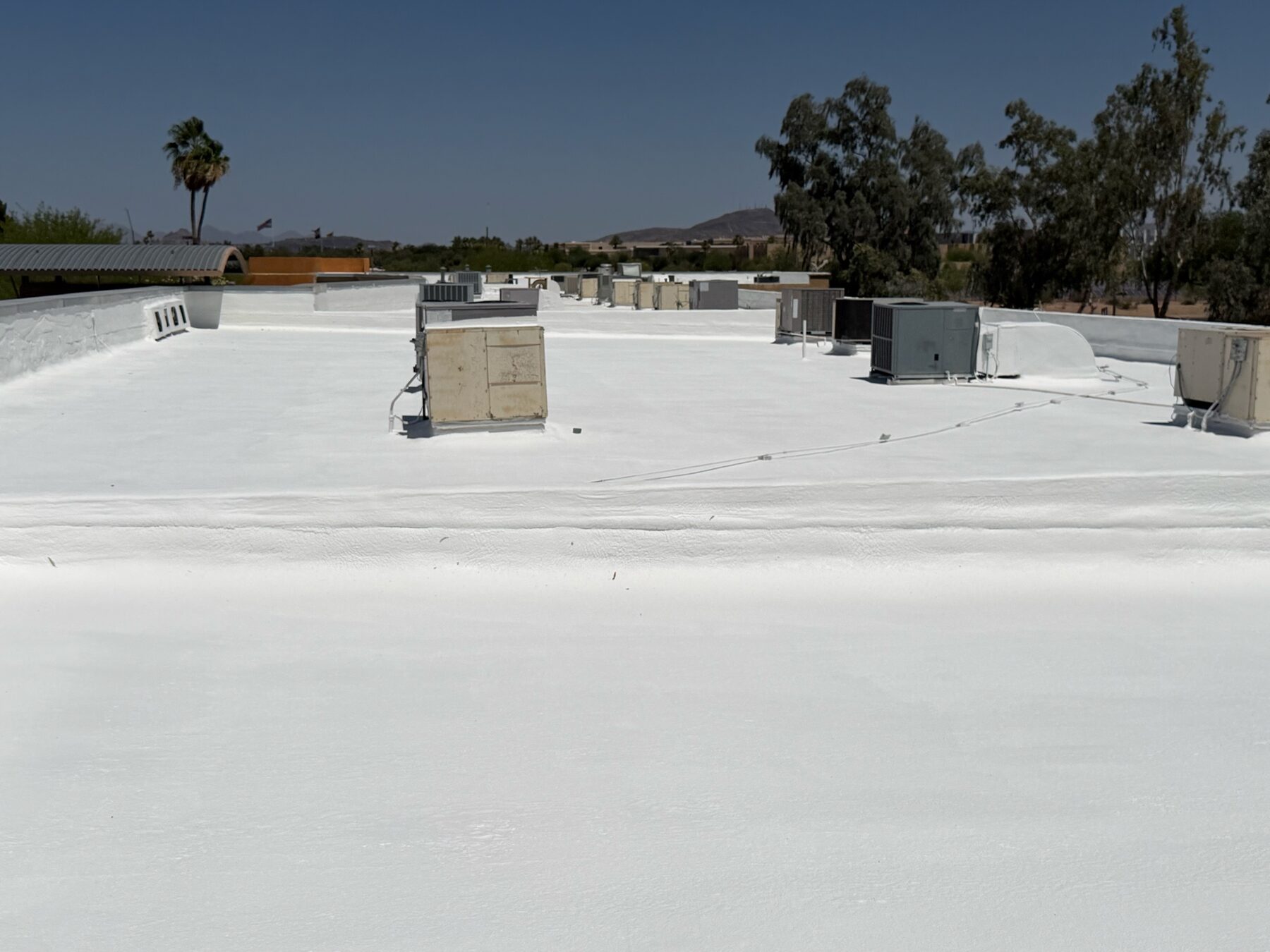

The ResultA like-new roof, a 10-year warranty, and a building owner who saved hundreds of thousands
The before-and-after on this project is dramatic — but the real value isn't visual. It's structural and financial. A full tear-off and replacement on a 38,000 square foot retail center would have meant tenant disruption, six figures of additional cost, and weeks of rooftop work over occupied businesses. Restoration delivered a watertight, code-compliant, warranty-backed roof system at a fraction of the cost and with minimal tenant impact.
The Warranty10-Year No Leak — backed by Vanguard, not a third party
This restoration is covered by a 10-year No Leak Warranty issued directly by Vanguard Roofing AZ. That means if water gets through during the warranty term, we come fix it — no third-party claims process, no manufacturer hand-offs, no fine-print exclusions for "Acts of God" that mysteriously cover monsoon damage. It's our work, it's our warranty, and we stand behind it.
Why restoration beats replacement for aging SPF
A 20-year-old foam roof that still has structural integrity is almost always a better restoration candidate than a tear-off candidate. The foam substrate itself is highly durable — it's the protective topcoat that ages out. When you tear off a sound SPF system, you're throwing away the most expensive and most insulating part of the roof, and you're sending tons of polyurethane to the landfill. Restoration preserves the substrate, addresses the surface failures, and resets the warranty clock. For the right roof, it's the right answer — and this Glendale retail center was exactly the right roof.

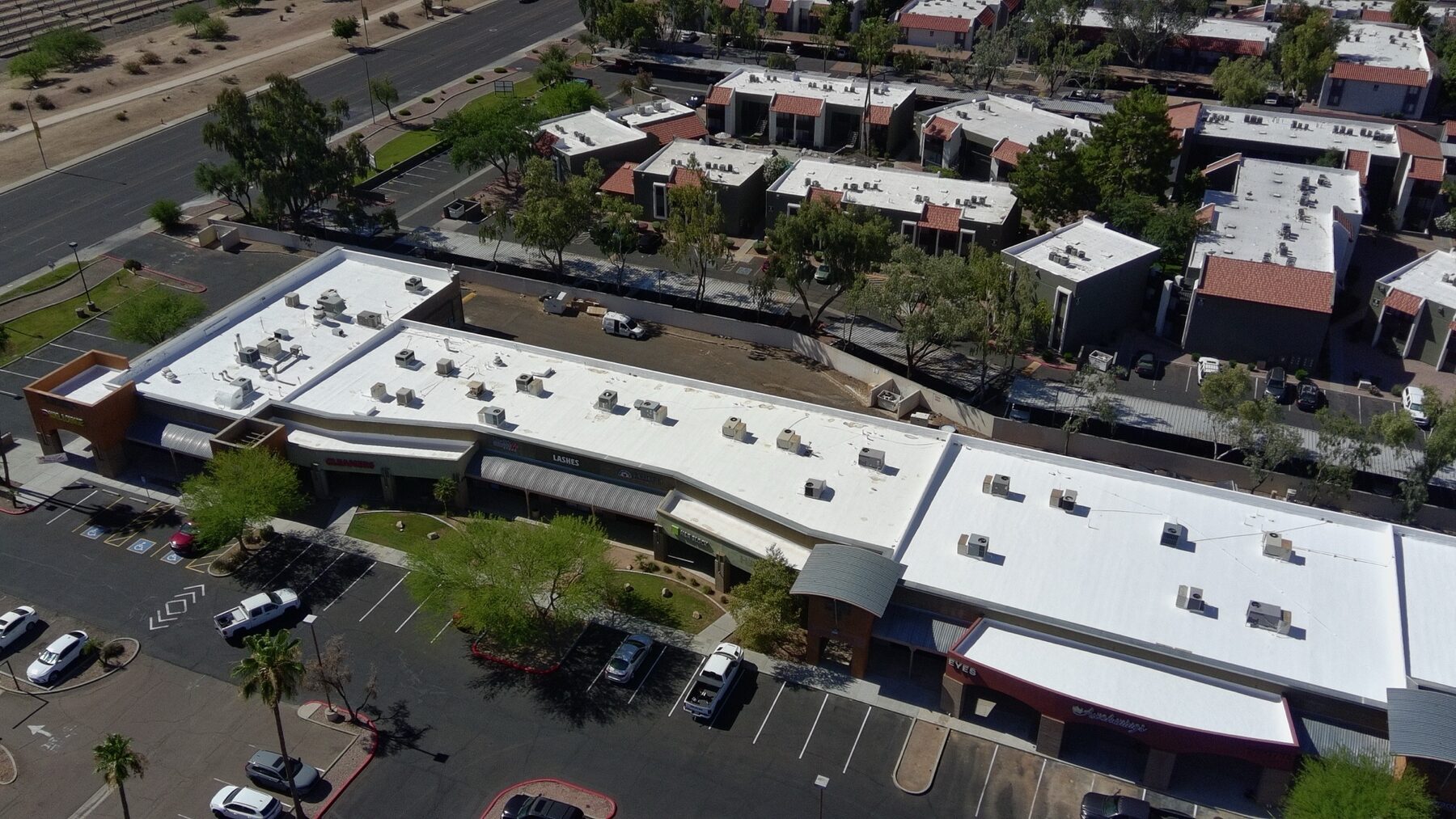

About the PropertyMulti-tenant retail at 51st Ave & Thunderbird, Glendale
This shopping center sits at one of Glendale's busier retail intersections, with a mix of service and retail tenants under a single 38,000 square foot roof. Multi-tenant retail centers like this one have a unique set of roofing challenges: you can't shut the roof down, every tenant has different HVAC equipment with different penetration locations, and abandoned equipment piles up faster than anyone realizes. Restoration projects on retail centers have to be planned around business hours, parking lot access, and tenant communication — none of which a standard residential roofer is set up to handle.
If you own or manage a strip mall, retail center, or multi-tenant commercial property anywhere in the Phoenix metro and your roof is showing similar signs — chalky surface, ponding water, leaks under HVAC units, abandoned equipment — we'd be glad to come out and walk it with you. See our retail center roofing services →
